Soken YQ series fuel gas / oil heat carrier boiler is a well-known brand s at home and abroad, as well as invention patent products of Soken; and high-tech products of Jiangsu Province.

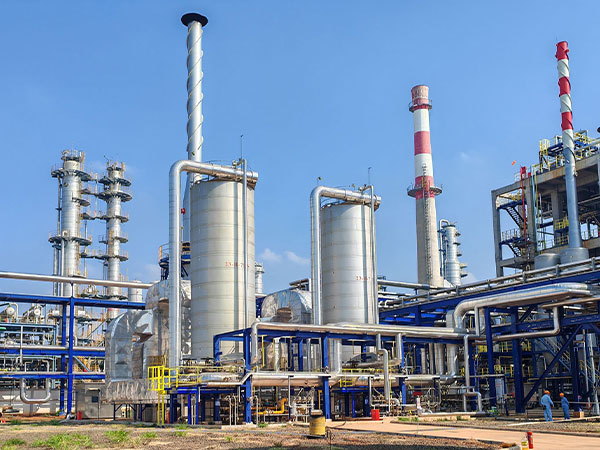

Fuel gas (oil) heat carrier boilers use fuel gas and fuel oil as fuel and various heat carriers as heat transfer media. They utilize circulating pumps for closed-loop pipeline liquid-phase circulation of heat carrier. The heat carrier transfers heat energy to heat exchange equipment required by the process, and returns to the special industrial boilers for reheating.

Soken YQ series cylindrical heat carrier boiler offer a single unit heating capacity range from 1.2MW to 45MW.

Applicable Industries:

The coal-fired heat carrier boiler system, equipped with high-efficiency and energy-saving waste heat recovery facilities and high-precision instrument controls, features online monitoring and alarm interlock functions for temperature, pressure, flow, and level. It is a high-efficiency, energy-saving, and environmentally friendly heating equipment for industries such as fine chemicals, chemical fiber textiles, engineering plastics, and food processing.

Technical Features:

Soken invention patent technology

Soken high-efficiency heat transfer technology

End coil structure technology

Top high-strength heat insulation structure technology

Heat resisting support structure technology for radiant zone

Low NoX environmental emission control technology

Low nitrogen combustion control technology for radiant zone

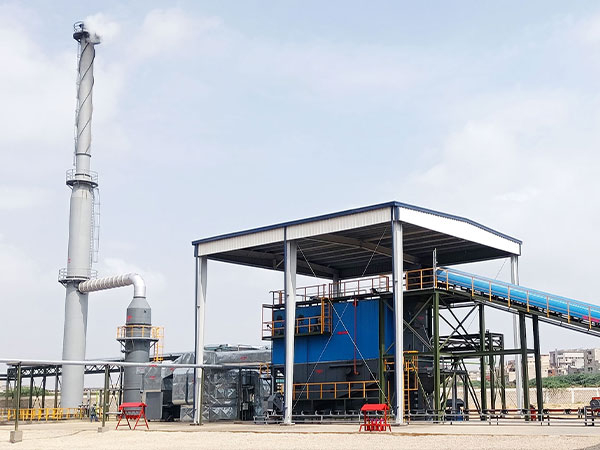

Coal-fired heat carrier boilers use bituminous coal as fuel and various heat carriers as heat transfer media. They utilize circulating pumps for closed-loop pipeline liquid-phase circulation of heat carrier. The heat carrier transfers heat energy to heat exchange equipment required by the process, and returns to the special industrial boilers for reheating.

Soken YLL series box-type coal-fired heat carrier boilers offer a single unit heating capacity range from 1.2MW to 40.7MW.

Applicable Industries:

The coal-fired heat carrier boiler system, equipped with high-efficiency and energy-saving waste heat recovery facilities, mature and stable desulfurization, denitrification, and dedusting facilities and high-precision instrument controls, features online monitoring and alarm interlock functions for temperature, pressure, flow, and level. It is a high-efficiency, energy-saving, and environmentally friendly heating equipment for industries such as fine chemicals, chemical fiber textiles, engineering plastics, and food processing.

Technical Features:

Binary radiant super large heat exchange surface heat absorption technology

High-strength enhanced convection heat exchange technology

Automatic online ash removal technology for convection section

High-efficiency energy-saving waste heat recovery technology

Boiler flue gas temperature control technology

Grate combustion and precise regulation technology

Environmental emission control technology

High-efficiency dust and slag removal control technology

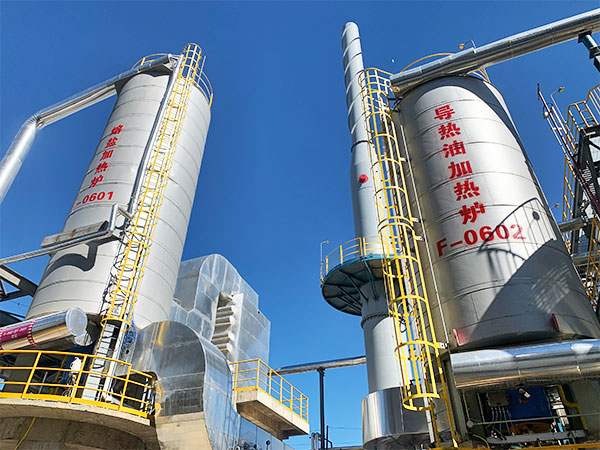

The molten salt heating boilers are industrial heating boilers using fuel gas, coal-fired and fuel oil as fuel and inorganic molten salt (binary salt, ternary salt etc.) as heat carrier. They utilize heat resisting molten salt pumps for liquid-phase circulation of heat carrier. The heat carrier transfers heat energy to heat exchange equipment required by the process, and returns to the special industrial boilers for reheating. The heating temperature range is 350~570°C, meeting the needs of heat exchange applications in various high-temperature processes.

Soken RY series molten salt boilers offer a heating capacity range from 1.2MW to 35MW.

Applicable Industries:

The molten salt heating boiler system, equipped with high-efficiency and energy-saving waste heat recovery facilities and high-precision instrument controls, features online monitoring and alarm interlock functions for temperature, pressure, flow, and level. It is a high-efficiency, energy-saving high temperature technology heating equipment for industries such as melamine, caustic soda/flakes and carbon black cracking.

Technical Features:

Ultra-high temperature radiant convection tube structure technology

Heat resisting boiler top structure technology

Top coil structure technology

Multi-layer heat exchange coil enhanced heat transfer technology

Heat resisting radiant - convection heat transfer technology

Ultra-high temperature heat transfer thermal efficiency technology

Low-nitrogen combustion emission technology

Mixed combustion ultra-low emission technology

Ultra-high temperature waste heat recovery enhancement technology

High-low temperature secondary circulation temperature control technology

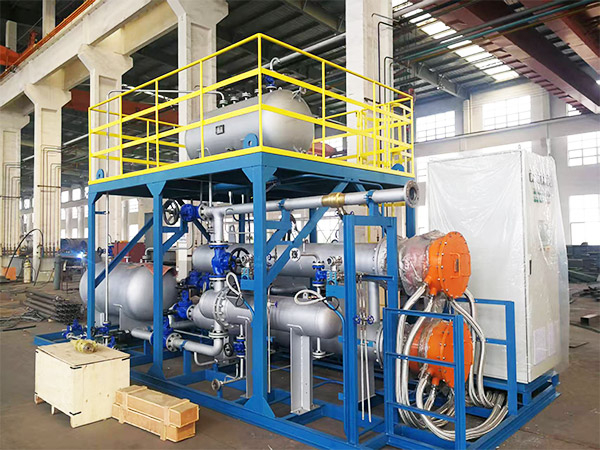

The electrical heating heat carrier boilers are special industrial boilers using electric energy for heating and various heat carriers as heat transfer media. They utilize circulating pumps for closed-loop pipeline liquid-phase circulation of heat carrier. The heat carrier transfers heat energy to heat exchange equipment required by the process, and returns to the special industrial boilers for reheating.

The boilers are designed to the heat demand of customers, with a power range of 10KW~5000KW for option.

Applicable Industries:

The electrical heating heat carrier boiler system, equipped with high-precision instrument controls, features online monitoring and alarm interlock functions for temperature, pressure, flow, and level. It is a high-efficiency and energy-saving heating equipment for industries such as fine chemicals, chemical fiber textiles, engineering plastics, and food processing.

Technical Patents:

Electrical heating organic heat carrier boiler

Electrical heating molten salt boiler

Multi-temperature level heat medium electrical heaters

Safety devices for electrical heating heat carrier boilers

Group control devices for electrical heating heat carrier boilers

Heat insulation structure for tube sheet flanges of electrical heating heat carrier boilers

Insulation structure for ultra-high temperature electrical heating heat carrier boilers
